Our focus is on solving the issues faced by hydraulic cylinder manufacturers. We have been successfully engaged in this activity since 2016. With an in-depth understanding of the market and its associated challenges, we provide comprehensive solutions for cylinder production:

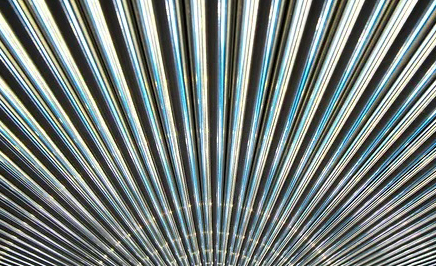

– Chrome Plated Bars and Chrome Plated Tubes: We offer Chrome Plated Bars and Tubes with diameters of up to 500 mm and a maximum length of 16 m. These chromed items feature a hardness of R10 for 200 hours. Additionally, we provide Induction Hardened products made from steel grades such as C45, 20MnV6, and 42CrMo4.

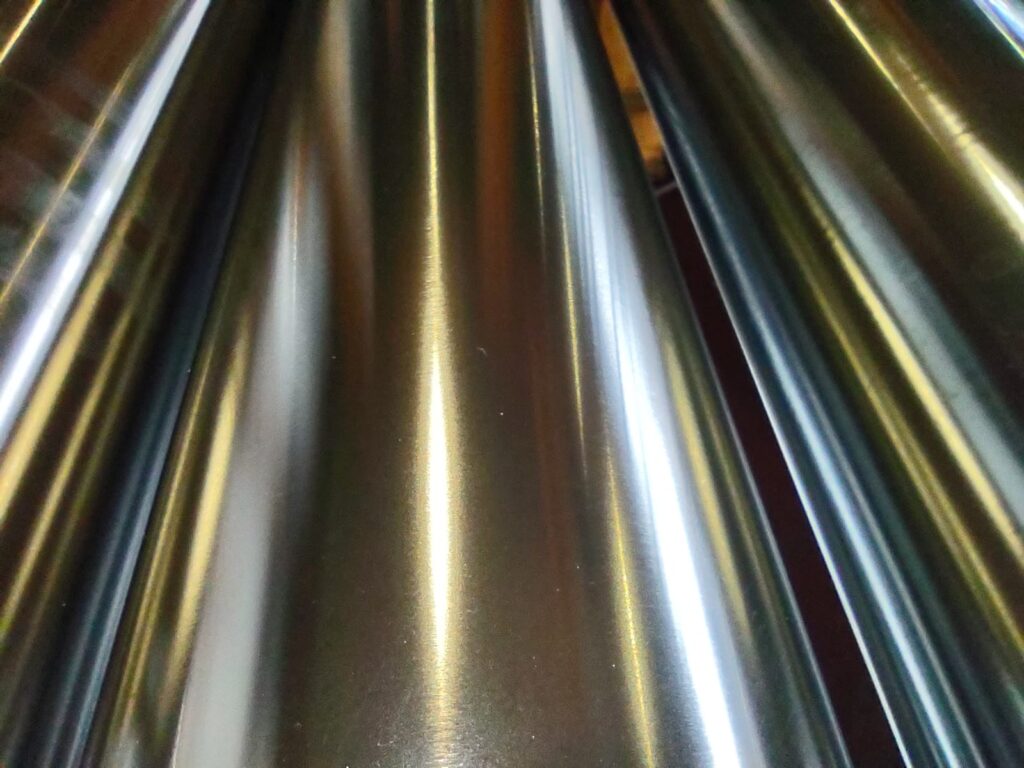

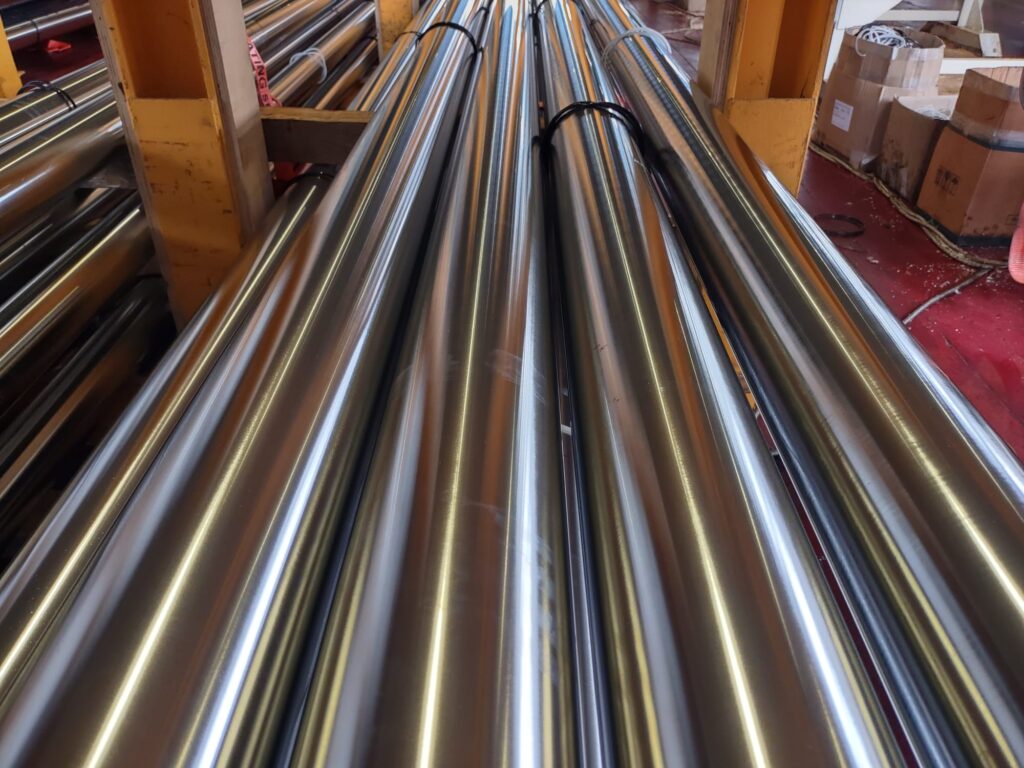

Chrome Plated Bars and Tubes in Stainless Steel
We are pleased to introduce our new range of Chrome Plated Bars and Tubes made from European-produced stainless steel. This product line offers high corrosion resistance and meets the highest quality standards.
Steel Grades:
- 1.4057 (AISI 431)
- 1.4301 (AISI 304)
- 1.4404 (AISI 316)
Characteristics:
- European production
- Fast delivery
- Lengths up to 16 meters
- Diameters from 12 mm to 500 mm
- Standard Corrosion Resistance is R10/600h According to NSS Tests
Our new stainless steel products are ideal for applications requiring enhanced corrosion resistance and durability. Contact us to learn more about how this new range can benefit your production needs.
– Welded Cold Drawn H9 Tubes: Our range includes Welded Cold Drawn H9 Tubes made of steel grade E355+C, compliant with EN10305-2.
– Seamless Cold Drawn H8 Tubes: We supply Seamless Cold Drawn H8 Tubes made of steel grade E355+SR, adhering to EN10305-1 standards. Upon request, we also offer tubes with 20MnV6+QT.
We are capable of providing certificates tailored to the specific requirements of the end customers, including:
– Inner Surface (ID): Ra=0.1-0.2μm (Rz=0.4-1.6μm)
– Outer Surface (OD): Ra ≤ 4μm (max.)
– Charpy V – Notch Test – Impact Energy
Further offerings include:
– Seamless Cold Drawn HPZ Tubes: Manufactured from steel grade E355+SR, in compliance with EN10305-1.
– Welded Cold Drawn HPZ Tubes: Crafted from steel grade E355+SR, meeting EN10305-2 specifications.
– Seamless Cold Drawn HPL Tubes: Our range comprises seamless tubes made of steel grade E235+N, conforming to EN10305-4.

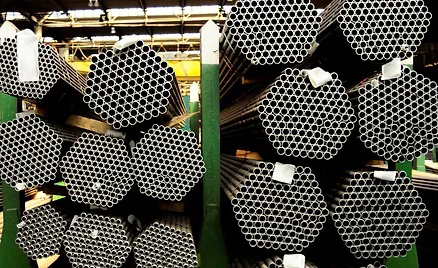

In addition to the above, we provide a selection of Seamless Hot-Rolled Tubes:
– Seamless Tubes in steel grade S355J2H, compliant with EN10210-1,2.
– Seamless Tubes in steel grade E470, adhering to EN10294-1.
– Boiler Tubes in steel grade P265GHTC / P235GHTC, conforming to EN10216-1.
– Seamless Tubes in steel grade P265TR / P235TR, compliant with EN10216-2.

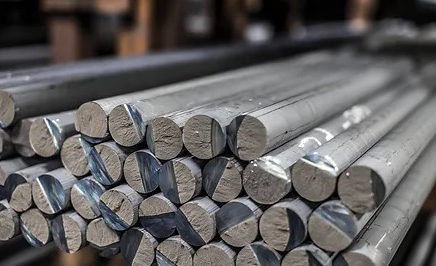

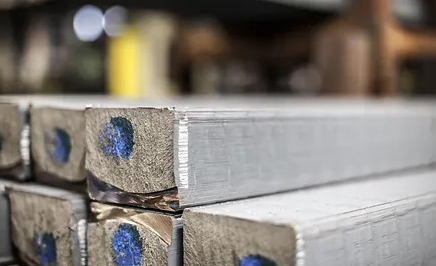

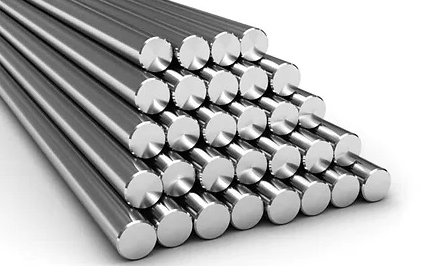

Our offerings also encompass Hot-Rolled Steel Bars and Peeled Steel Bars, as well as Continuous Cast Iron Round Bars and Continuous Cast Iron Square & Rectangular Bars in various grades:
– Cast Iron Grade GJL-150
– Cast Iron Grade GJL-250
– Cast Iron Grade GJS-500
– Cast Iron Grade GJS-400
– Cast Iron Grade GJS-600
With our extensive range and expertise, we are dedicated to addressing the unique needs of hydraulic cylinder manufacturers, ensuring high-quality solutions for their production requirements.
Contact us to discuss how we can support your specific needs.
